Sensors are embedded in various testing instruments for detection in various fields. Dust detectors and dust particle counters are both instruments that use the principle of laser scattering to detect particulate matter. What is the difference between the two?

A dust particle counter extracts sample gas through a sampling pump. In the laser chamber, the sample gas is illuminated by a laser; the frequency of the flashes reflected by the particles indicates the quantity of particles, and the intensity of the reflected light indicates the particle size. Since the components in the laser chamber are not protected by sheath gas, laser particle counters should be used in clean environments to prevent damage to the sensor. When the measured area has loose particulate matter or sprays, stay at least twelve inches from the inlet pipe to avoid contamination. Parameters for different brands of dust particle counters vary, and their application scenarios also differ.

A dust monitor draws gas into the test chamber via an air pump. The gas to be tested is divided into two parts at a branch: one part is filtered through a high-efficiency filter to obtain clean air used as sheath gas to protect the sensor chamber components from contamination. The other part enters the sensor chamber directly as the sample. Inside the chamber, the main components are a laser diode, a lens group, and a photodetector.

During detection, the laser light emitted by the laser diode is used to form a thin layer light source passing through the lens group. When the light passes through the aerosol flowing through the sensor cavity, scattering occurs, and the intensity is detected by the photodetector. The photodetector generates an electrical signal proportional to the aerosol mass concentration, which is then multiplied by a voltage calibration factor obtained by measuring a specific concentration of aerosol.

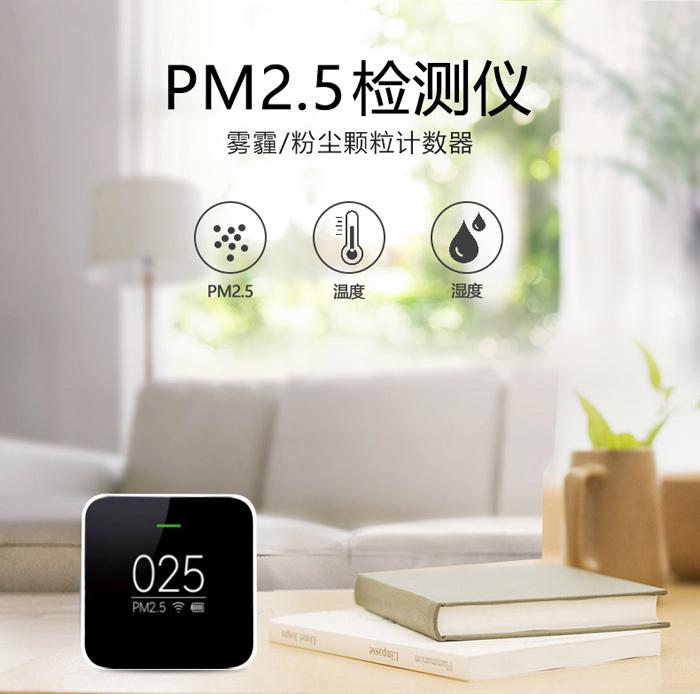

Dust particle counters are used in cleanrooms within industries such as pharmaceuticals, electronics, and precision machinery to monitor purification effects and ensure product quality. Dust monitors are primarily used to measure the atmospheric environment. They are suitable for environmental research institutions (meteorology, public health, air pollution research) and have been applied in disease control centers, mines, metallurgy, power plants, and online environmental monitoring.

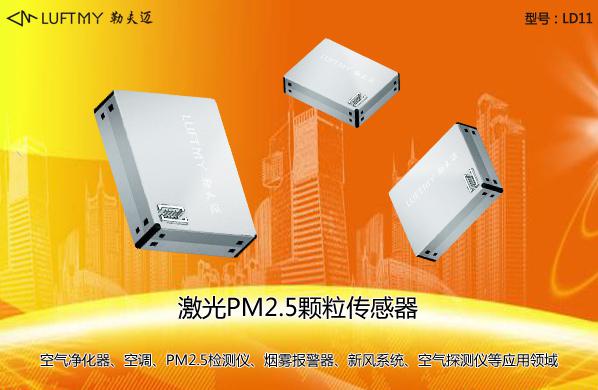

The application fields of dust monitors and dust particle counters differ, with dust monitors being more common in daily life. The Luftmy LD11 laser dust sensor can be embedded in detectors, wearable devices, air purifiers, and fresh air systems for dust detection. Its thin design and wide range make it suitable for many uses; contact customer service for detailed solutions.
