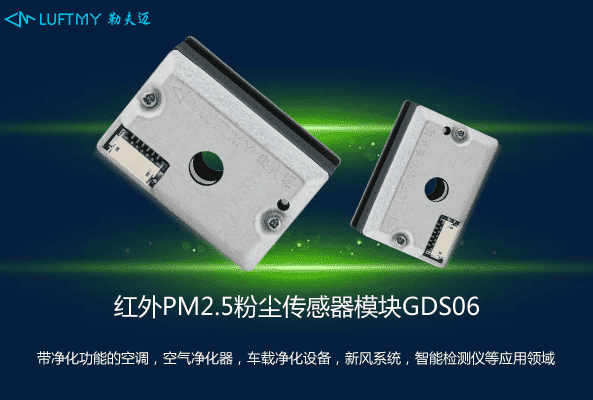

I. Product Name: LUFTMY Infrared PM2.5 Dust Sensor Module

II. Product Model: GDS06

The Infrared PM2.5 Dust Sensor Module GDS06 utilizes the principle of optical scattering to obtain the particulate matter concentration. Since particles and molecules produce light scattering when illuminated, they also absorb part of the incident light energy. The light intensity is proportional to the strength of the photoelectric conversion signal. By measuring the electrical signal, the relative attenuation rate can be obtained, which in turn allows the determination of dust concentration in the test field. PWM and UART communication are then applied via a microcontroller.

III. Application Scope of Dust Sensor Module GDS06:

Air conditioners with purification functions, air purifiers, vehicle-mounted purification equipment, portable detectors, fresh air systems, smart detectors, etc.

IV. Features of Dust Sensor Module GDS06:

1. High measurement accuracy;

2. Small size;

3. Long service life, over 5 years under continuous power-on conditions.

4. Low power consumption;

5. Short response time;

6. Wide measurement range;

7. Convenient and fast application;

V. Technical Specifications of Dust Sensor Module GDS06:

Detection Principle: Infrared light scattering principle

Dust sensor detection particle size range: 0.3~10μm

PM2.5 Output consistency: >100μg/m³ maximum allowable error ±15%, <100μg/m³ maximum allowable error ±15μg/m³

Dust sensor working conditions: -10~65°C, 0~95% RH

Storage conditions: -20~80°C, 0~95% RH (non-condensing)

Dust sensor working voltage: DC 5.0V±0.2V

Dust sensor working current: <20mA

Standby current: <0.1mA

Output signal: UART, PWM

Dust sensor dimensions: W47*H35*D19 (mm)

Sensor Recommendations:

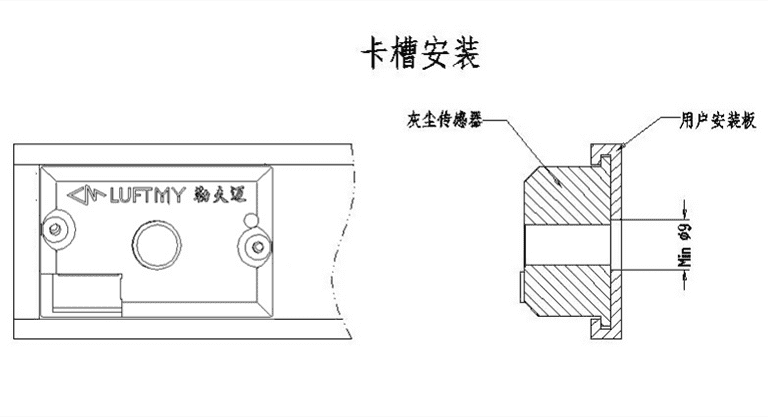

1. Installation should be in a position with air circulation;

2. Air velocity: 1.5～3 m/S, Air volume: 0.004～0.01 CMM

3. Please place the LUFTMY logo at the top during installation;

4. For front-facing installation, please keep at least 5mm of unobstructed space in front of the sensor ventilation holes;

5. It is recommended to add 3 to 5 mm thick black breathable filter cotton at the ventilation hole on the side of the sensor close to the machine's air inlet to prevent the accumulation and blockage of large particles such as dust and lint;

6. Please try to install in a backlit area.

LUFTMY focuses on the research, production, and sales of optical particulate matter sensor technology. It has been widely praised in the industry for multiple performance indicators such as measurement accuracy, stability, consistency error, and anti-interference. LUFTMY provides gas sensor modules such as infrared dust sensors, laser dust sensors, PM2.5 sensor modules, micro-dust sensors, particulate matter sensors, dust sensor modules, dust sensors, and air quality sensors.
