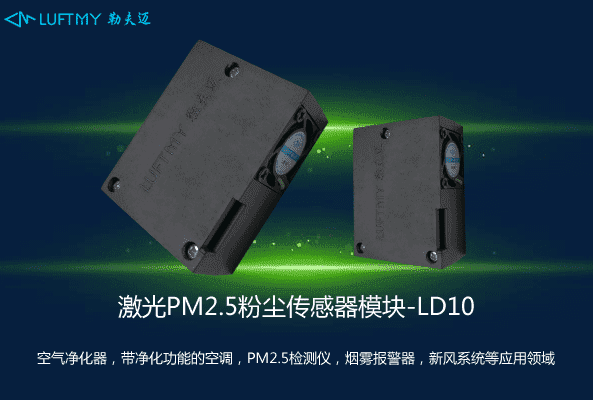

I. Product Name: Luftmy Laser Dust Sensor Module

II. Product Model: LD10

The LD10 PM2.5 laser dust sensor is a high-precision particulate matter concentration sensor based on Laser Mie Scattering Theory, with a universal digital interface output. It can be embedded in various instruments or environmental improvement equipment related to the concentration of suspended particulate matter in the air to provide timely and accurate concentration data.

III. LD10 Dust Sensor Application Scope:

Air purifiers, air conditioners with purification functions, PM2.5 detectors, range hoods, smoke alarms, fresh air systems, dedicated PM2.5 sensors, air detectors, wearable devices, etc.

IV. LD10 Dust Sensor Features:

1. Zero false alarm rate;

2. Real-time response and support for continuous acquisition;

3. Long lifespan of electronic control components;

4. Stronger anti-interference performance;

5. Wide application range, compatible with multi-protocol output;

6. Ultra-thin and lightweight design;

7. Simultaneous output of PM0.3, PM0.5, PM1.0, PM2.5, and PM10.

V. LD10 Dust Sensor Technical Specifications:

Detection Principle: Mie Spherical Scattering Principle

Detection Particle Size Range: 0.1~10μm

PM2.5 Output Consistency: >100μg/m³ Maximum Error ±8%; <100μg/m³ Maximum Error ±10μg/m³

Working Conditions: -10~70°C, 5~95% RH

Storage Conditions: -40~80°C, 0~95% RH (Non-condensing)

Working Voltage: DC 5.0V±5%

Working Current: <80mA

Standby Current: <0.5mA

Output Signal: UART, PWM

Dimensions: W50*H38*D21(mm)
