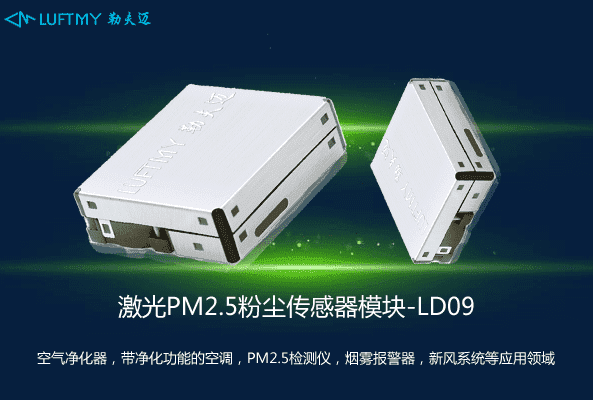

I. Product Name: Luftmy Laser Dust PM2.5 Sensor Module

II. Product Model: LD09

The LD09 PM2.5 laser dust sensor is a high-precision particulate matter concentration sensor based on Laser Mie Scattering Theory. It can continuously collect and calculate the number of suspended particles of different sizes in the air per unit volume, with a universal digital interface output. It can be embedded in various instruments or environmental improvement equipment related to the concentration of suspended particulate matter concentration in the air to provide timely and accurate concentration data.

III. LD09 Dust Sensor Application Scope:

Air conditioners with purification functions, air purifiers, PM2.5 detectors, range hoods, smoke alarms, Fresh air systems, dedicated PM2.5 sensors, air detectors, wearable devices, etc.

IV. LD09 Dust Sensor Features:

1. High measurement accuracy and zero false alarm rate;

2. Real-time response and support for continuous acquisition;

3. Long lifespan, mean time between failures ≥ 5 years;

4. Strong anti-interference ability;

5. High consistency;

6. Wide application range, compatible with multi-protocol output, simultaneous output of PM0.3, PM0.5, PM1.0, PM2.5, and PM10.

7. Ultra-thin and lightweight design;

V. LD09 Dust Sensor Technical Specifications:

Detection Principle: Mie Spherical Scattering Principle

Detection Particle Size Range: 0.1~10μm

PM2.5 Output Consistency: >100μg/m³ Maximum Error ±8%; <100μg/m³ Maximum Error ±10μg/m³

Working Conditions: -10~70°C, 0~95% RH

Storage Conditions: -40~80°C, 0~95% RH (Non-condensing)

Working Voltage: DC 5.0V±5%

Working Current: <80mA

Standby Current: <0.5mA

Output Signal: UART, PWM

Dimensions: W38*H35*D12（mm）

Luftmy focuses on the research, production, and sales of optical particulate matter sensor technology. Its measurement accuracy, stability, consistency error, anti-interference, and other performance indicators have been widely praised in the industry. Luftmy provides gas sensor modules such as dust infrared sensors, dust laser sensors, PM2.5 sensors, micro-dust sensors, particulate matter sensors, dust sensors, and air quality sensors.
