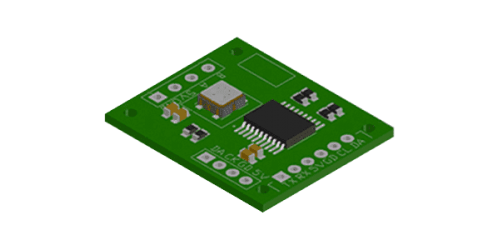

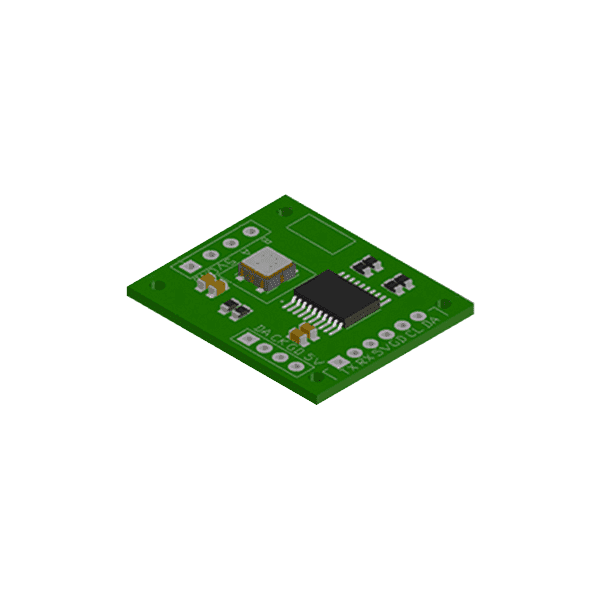

High sensitivity and fast response to methane gas
Built-in temperature compensation algorithm, external humidity compensation supported
Very low power consumption (< 100mW)
Intelligent automatic baseline calibration
Baseline value can be reset, storage status is configurable
Robust design, excellent long-term stability
Highly flexible communication interface
Detection Principle: MEMS Metal Oxide Semiconductor Sensor
Detection Range: 0-50000 ppm equivalent value
Warm-up Time: 3 Min.
Communication Protocol: I²C, UART, A/B Level
Calibration Method: Intelligent baseline calibration, power-off storage with settable reference value
Voltage: 5.0V±0.2V, max. 20mV ripple
Power Consumption: Max. 100mW @5.0VDC (20mA)
Test Interval: 1 Sec.
Operating Temperature: -10 ~ +60 ℃
Operating Humidity: 5 ~95 % RH, non-condensing
Storage Temperature: -40 ~ 85 ℃
Storage Humidity: 5 ~95 % RH, non-condensing
