I. Product Name: LUFTMY Infrared PM2.5 Dust Sensor Module

II. Product Model: HPD05

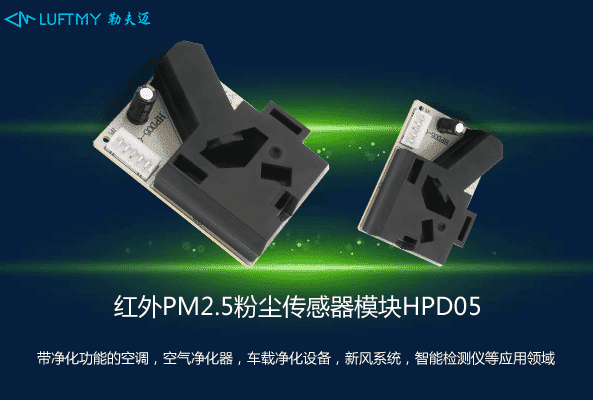

The PM2.5 Dust Infrared Sensor Module HPD05 utilizes the principle of optical scattering to obtain particulate matter concentration. Since particles and molecules produce light scattering when illuminated, they also absorb part of the incident light energy. The light intensity is proportional to the strength of the photoelectric conversion signal. By measuring the electrical signal, the relative attenuation rate can be obtained, which in turn allows the determination of dust concentration in the test field. PWM and UART communication are then applied via a microcontroller. This sensor is suitable for air purifiers, air conditioners with purification functions, fresh air systems, and air quality detection instruments.

III. Application Scope of Infrared Dust Sensor Module HPD05:

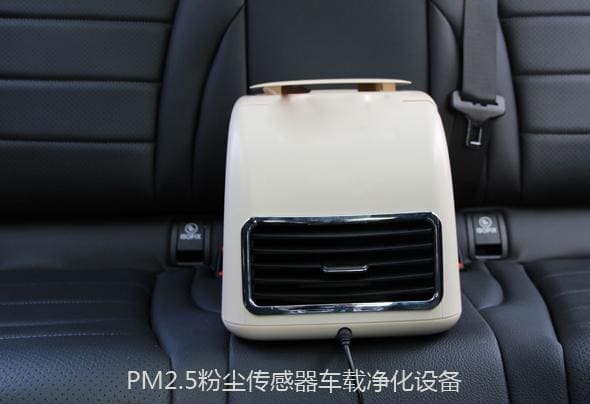

Air conditioners with purification functions, air purifiers, vehicle-mounted purification equipment, portable detectors, fresh air systems, smart detectors, etc.

IV. Features of Infrared Dust Sensor Module HPD05:

1. High measurement accuracy;

2. Small size;

3. Long service life, over 5 years under continuous power-on conditions;

4. Low power consumption;

5. Short response time;

6. Wide measurement range;

7. Convenient and fast application;

V. Technical Specifications of Dust Sensor Module HPD05:

Detection Principle: Infrared light scattering principle

Dust sensor detection particle size range: 0.5~10μm

PM2.5 Output consistency: >100μg/m³ maximum allowable error ±15%, <100μg/m³ maximum allowable error ±15μg/m³

Working conditions: -20~60°C, 0~95% RH

Storage conditions: -20~80°C, 0~95% RH (non-condensing)

Dust sensor working voltage: DC 5.0V±0.2V

Dust sensor working current: <100mA

Standby current: <0.1mA

Output signal: UART, PWM

Dust sensor dimensions: W45*H59*D15 (mm)

VI. HPD05 Dust Sensor Price and PM2.5 Infrared Sensor Manufacturer:

The dust sensor HPD05 is developed and produced by LUFTMY. If you are interested in this infrared sensor module, please visit the LUFTMY official website to check contact information.

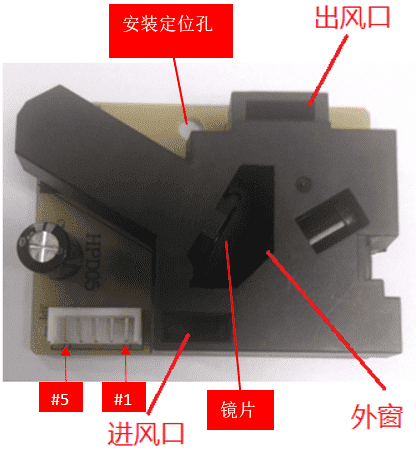

Sensor Installation Suggestions:

1. Installation should be in a position with air circulation;

2. Air velocity: 1.5～3 m/S, Air volume: 0.004～0.01 CMM;

3. Please place the LUFTMY logo at the top during installation;

4. For front-facing installation, please keep at least 5mm of unobstructed space in front of the sensor ventilation holes;

5. It is recommended to add 3 to 5 mm thick black breathable filter cotton at the ventilation hole on the side of the sensor close to the machine's air inlet to prevent the accumulation and blockage of large particles such as dust and lint;

6. Please try to install in a backlit area.
