Output particle counts for 0.3μm, 0.5μm, 1.0μm, 5.0μm, 10μm (pcs/28.3L)
Industrial-grade laser, high reliability
Small size, easy installation
Meets JJF 1190 requirements
Detection principle: Light scattering
Measured particle size range: 0.3–10 μm
Counting efficiency: 50% @ 0.3 μm
100% @ >0.45 μm
(Reference: Lighthouse Solair 3100, 25 ± 2 °C, 50 ± 10% RH)
Counting repeatability: ≤ 5%
Self-cleaning time: ≤ 5 min
Maximum allowable operating concentration: 1,000,000 pcs/28.3 L @ 0.3 μm
Data refresh rate: 1 s
Operating conditions: 0–40 °C; 5–95% RH (non-condensing)
Storage conditions: -10–50 °C; 5–95% RH (non-condensing)
Operating voltage: DC 5 V ± 0.2 V, ripple < 100 mV
Average operating current: < 250 mA
Communication interface: UART_TTL (3.3 V)
Product dimensions: W99.2 × H66 × D41.7 mm

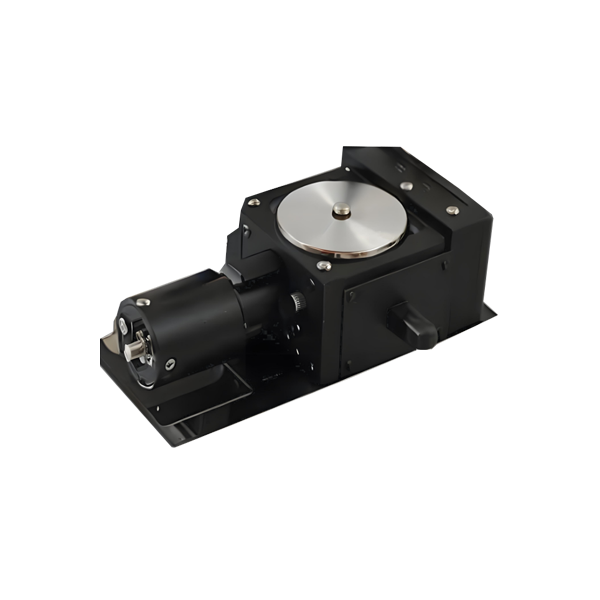

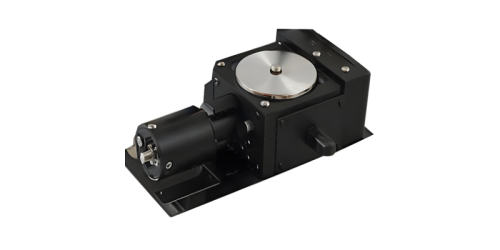

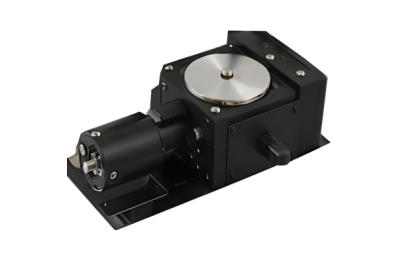

The LD5100 uses optical scattering to precisely detect suspended particles. It outputs counts for 5 different particle sizes (pcs/28.3L) with error values meeting JJF1190 requirements.

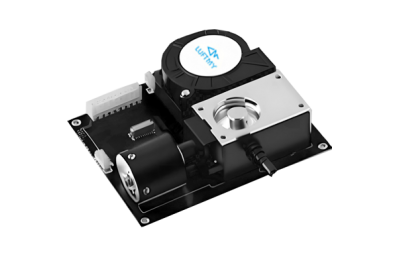

The LD5000 is an optical scattering sensor that accurately calculates the number of particles across six channels. Its efficiency meets the JJF 1190-2008 calibration standards for dust particle counters.
The LD1050 laser particle counter sensor utilizes an industrial-grade long-life laser and automotive-grade turbine fan to ensure stable, reliable, and precise output of particle counts. It uses RS485 communication for long-distance transmission.

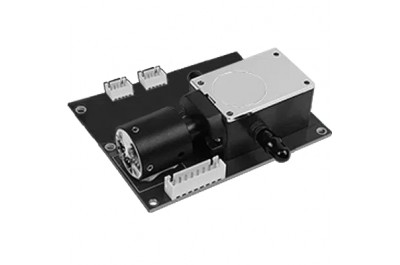

The LD3003 laser dust particle counter sensor is based on optical scattering principles to accurately detect the number of suspended particles of different sizes per unit volume. It outputs 6 channels of data simultaneously, meeting JJF1190-2008 calibration standards.
