Output particle counts for 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
Meets JJF 1190-2008 Dust Particle Counter Calibration Standard Specifications
Concave light-gathering design, high signal collection efficiency
RS485 communication, supports long-distance communication
Voltage stabilizer circuit design and EMC compatibility
Industrial-grade laser, high reliability
Wide voltage power supply design
Constant flow sampling, high stability
Detection range: ≥0.3 μm: 0–9,999,999 pcs/L
Output channels: 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10 μm
Counting efficiency: 50% @ 0.3 μm
100% @ ≥0.5 μm
(Reference: TSI9306, 25 °C ± 2 °C, 50 ± 10% RH)
Operating temperature: -30 °C–70 °C
Storage temperature: -40 °C–85 °C
Operating voltage: DC 5 V ± 0.1 V; DC 9–36 V
Operating current: DC 5 V: < 500 mA
DC 9 V: < 300 mA
DC 36 V: < 100 mA
Communication: RS485 / 4–20 mA (customizable)
Product dimensions: W100 × D115 × H40 mm
The LD5100 uses optical scattering to precisely detect suspended particles. It outputs counts for 5 different particle sizes (pcs/28.3L) with error values meeting JJF1190 requirements.
The LD5000 is an optical scattering sensor that accurately calculates the number of particles across six channels. Its efficiency meets the JJF 1190-2008 calibration standards for dust particle counters.

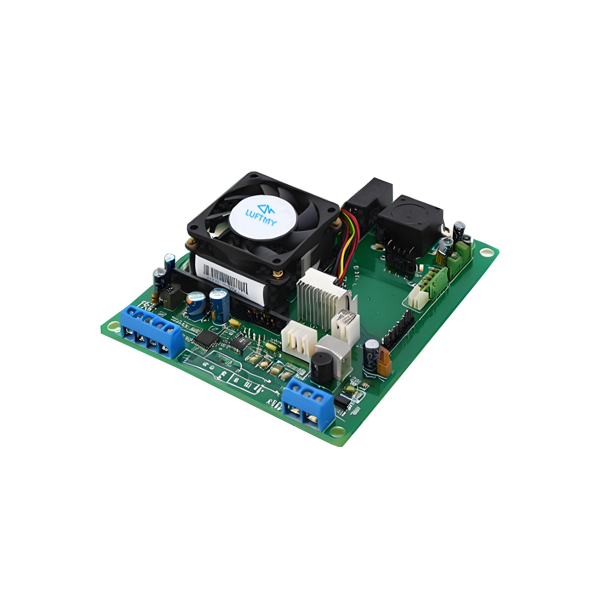

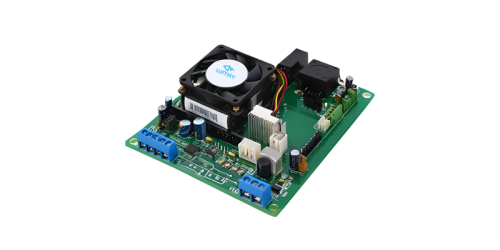

The LD1050 laser particle counter sensor utilizes an industrial-grade long-life laser and automotive-grade turbine fan to ensure stable, reliable, and precise output of particle counts. It uses RS485 communication for long-distance transmission.
The LD3003 laser dust particle counter sensor is based on optical scattering principles to accurately detect the number of suspended particles of different sizes per unit volume. It outputs 6 channels of data simultaneously, meeting JJF1190-2008 calibration standards.
