Output particle counts for six channels (0.3~ 10μm)
Constant power linear laser for precise identification
Can be paired with air pump for sampling
Meets JJF1190-2008 Dust Particle Counter Calibration Standard Specifications
Detection principle: Laser scattering
Detection range: 0–10,000,000 pcs/L (1 pcs/L = 28.3 pcs/cf)
Output channels: 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10 μm
Power-on stabilization time: ≤ 8 s
Data refresh rate: 1 s
Counting efficiency: 50% @ 0.3 μm
100% @ ≥0.5 μm
(Reference: TSI9306, 25 °C ± 2 °C, 50 ± 10% RH)
Operating conditions: -30 °C–70 °C, 0–95% RH (non-condensing)
Storage conditions: -40 °C–85 °C, 0–95% RH (non-condensing)
Operating voltage: DC 5.0 V ± 0.1 V; ripple < 50 mV
Operating current: < 150 mA
Standby current: < 25 mA
Communication interfaces: ① UART_TTL (3.3 V / 5 V)
② IIC (3.3 V / 5 V)
③ RS485
Product dimensions: W82 × H40.2 × D26.3 mm
The LD5100 uses optical scattering to precisely detect suspended particles. It outputs counts for 5 different particle sizes (pcs/28.3L) with error values meeting JJF1190 requirements.
The LD5000 is an optical scattering sensor that accurately calculates the number of particles across six channels. Its efficiency meets the JJF 1190-2008 calibration standards for dust particle counters.
The LD1050 laser particle counter sensor utilizes an industrial-grade long-life laser and automotive-grade turbine fan to ensure stable, reliable, and precise output of particle counts. It uses RS485 communication for long-distance transmission.

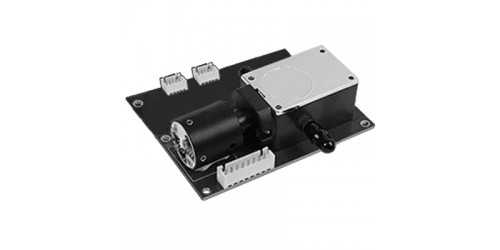

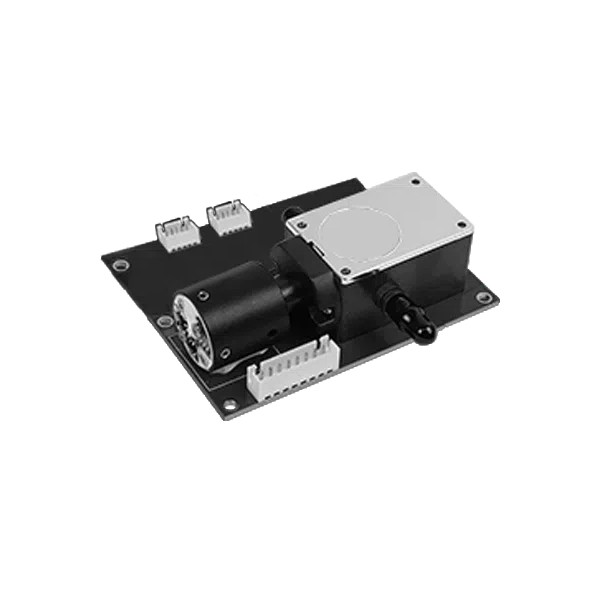

The LD3003 laser dust particle counter sensor is based on optical scattering principles to accurately detect the number of suspended particles of different sizes per unit volume. It outputs 6 channels of data simultaneously, meeting JJF1190-2008 calibration standards.
