Output particle counts for 0.3μm, 0.5μm, 1.0μm, 2.5μm, 5.0μm, 10μm
Constant flow sampling, high long-term operation stability
Constant power linear laser for precise identification
Meets JJF 1190-2008 Dust Particle Counter Calibration Standard Specifications
Technical principle: Laser scattering
Detection range: 0.3–10 μm
Counting efficiency: 50% @ 0.3 μm
100% @ ≥0.5 μm
(Reference: TSI9306, 25 °C ± 2 °C, 50 ± 10% RH)
Data refresh rate: 1 s
Power-on stabilization time: 8 s
Operating conditions: -30–70 °C, 0–95% RH (non-condensing)
Storage conditions: -40 °C–85 °C, 0–95% RH (non-condensing)
Operating voltage: DC 5.0 V ± 0.1 V; ripple < 50 mV
Operating current: < 300 mA
Standby current: < 25 mA
Communication interfaces: UART_TTL / IIC (3.3 V / 5 V)
RS485 (customizable)
Product dimensions: W85 × H74 × D24.9 mm
The LD5100 uses optical scattering to precisely detect suspended particles. It outputs counts for 5 different particle sizes (pcs/28.3L) with error values meeting JJF1190 requirements.

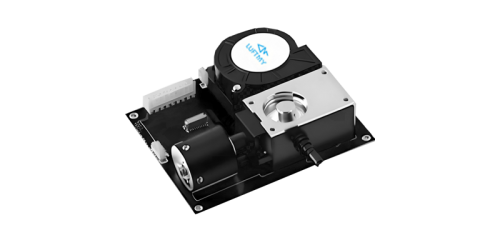

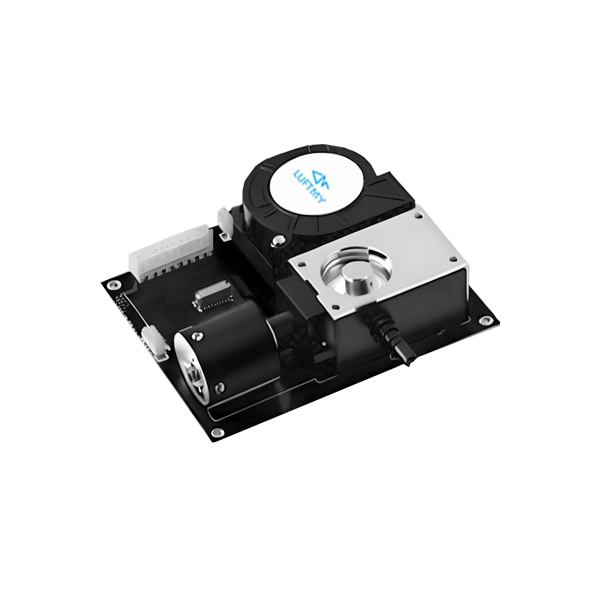

The LD5000 is an optical scattering sensor that accurately calculates the number of particles across six channels. Its efficiency meets the JJF 1190-2008 calibration standards for dust particle counters.
