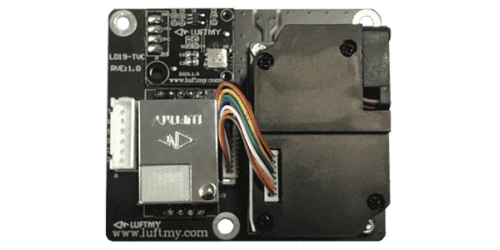

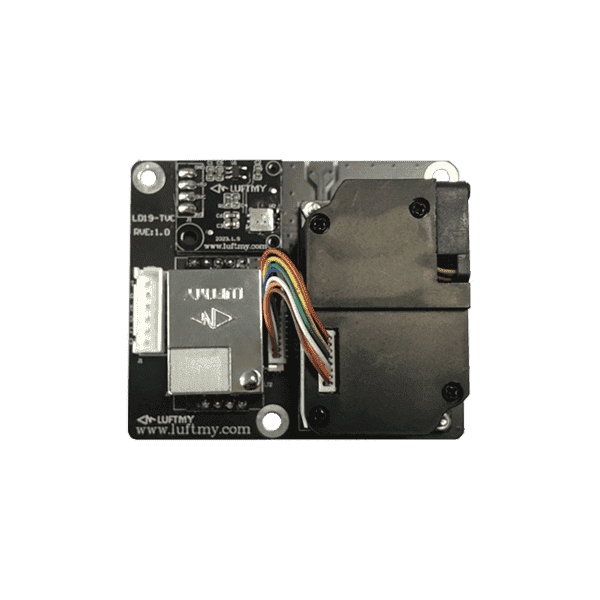

Simultaneous output of PM1.0, PM2.5, PM10, CO2, VOC, temperature/humidity
Dust Measuring Range: 0~1000ug/m³
CO2 Measuring Range: 400~5000ppm
VOC Measuring Range: 0~10ppb
Temperature Measuring Range: -20~70℃
Humidity Measuring Range: 0~95%RH
PM Detection Accuracy: When ≤100ug/m³, max allowable error ±10ug/m³
PM Detection Accuracy: When >100ug/m³, max allowable error ±10%
Temperature Detection Accuracy: -40~+80℃, ±1℃
Humidity Detection Accuracy: ±3RH(25℃)
CO2 Detection Accuracy: ±50ppm+5%
Dust Resolution: 1ug/m³
CO2 Resolution: 1ppm
VOC Resolution: 1ppb
Temperature Resolution: 0.1℃
Humidity Resolution: 0.1%
Working Voltage: DC 5V ± 5% (Power Ripple 50mV Max)
Working Current: ≤80 mA
Communication Protocol: UART, PWM
Service Life: ≥3 years
Product Size: L70.2*W45*H15(mm)
