Consistency output less than ±8-10%
Patented technology, accuracy up to 0.1μm
Real-time response, continuous collection for 30,000-50,000 hours
Simultaneous output of PM1.0, PM2.5, PM10, temperature/humidity, VOC
Ultra-thin design
Dust Measurement Range: 0~1000 ug/m³
VOC Measurement Range: 0~6000ppb
Temperature Measurement Range: －20~70℃
Humidity Measurement Range: 0~95%RH
Dust Detection Accuracy: 1μm/m³±10%
VOC Detection Accuracy: ±200ppb or ±50%
Temperature Detection Accuracy: －10~50℃, ±1℃
Humidity Detection Accuracy: 5~95%RH, ±8%RH
Operating Conditions: -10~50℃, 0~95% RH
Storage Conditions: -20~60℃, 0~95% RH (Non-condensing)
Working Voltage: DC 5V ± 5% (Power ripple 50mV Max)
Working Current: ≤100 mA
Signal Output: PWM, UART
Mean Time Between Failures (MTBF): ≥3 years
Product Dimensions: W48*H40*D12 (mm)

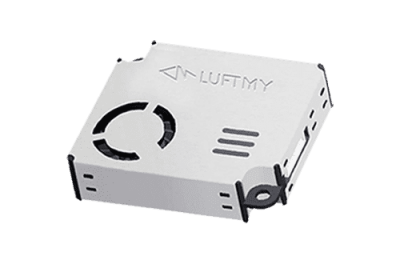

The LD15V integrated air quality sensor is a cost-effective multi-parameter integrated module. It can output real-time measurements of VOC concentration, CO2, formaldehyde, and mass concentrations of PM1.0, PM2.5, and PM10 particles. It features stable performance, full metal shielding, strong anti-interference ability, compact design, and rich interfaces. Widely used in high-end air purifiers, fresh air systems, air conditioners with purification functions, air quality detectors, and consumer electronics accessories.

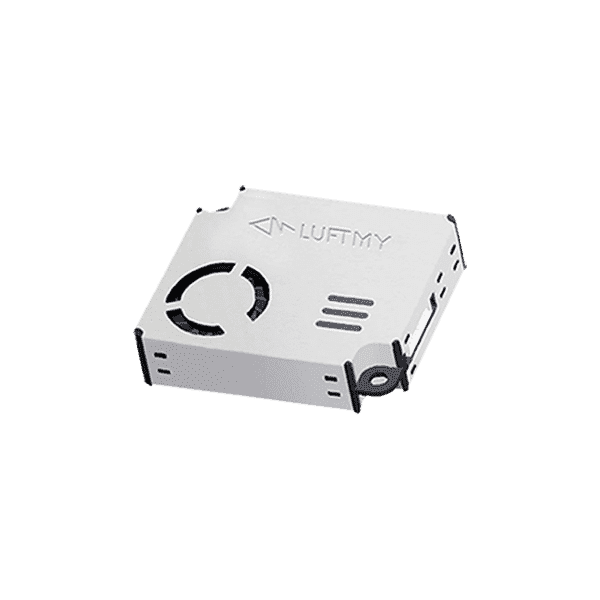

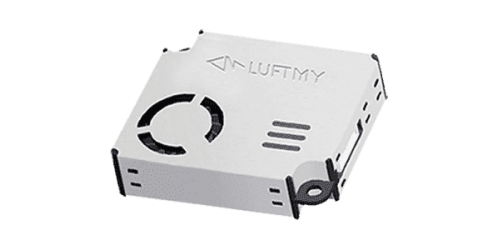

The LD15T integrated sensor module outputs temperature, humidity, and PM1.0/2.5/10 data. Stable, metal-shielded, and compact, it is suitable for high-end appliances and air quality detectors.
