Consistency output less than ±8-10%
Patented technology, accuracy up to 0.1μm
Real-time response, continuous collection for 30,000-50,000 hours
Simultaneous output of PM1.0, PM2.5, PM10, temperature/humidity, VOC
Dust Measurement Range: 0~1000 ug/m³
VOC Measurement Range: 0~6000ppb
Temperature Measurement Range: －20~70℃
Humidity Measurement Range: 0~95%RH
Dust Detection Accuracy: 1μm/m³±10%
VOC Detection Accuracy: ±200ppb or ±50%
Temperature Detection Accuracy: －10~50℃, ±1℃
Humidity Detection Accuracy: 5~95%RH, ±8%RH
Operating Conditions: -10~50℃, 15~95% RH
Storage Conditions: -20~65℃, 0~95% (Non-condensing)
Working Voltage: DC 5V±5% (Power ripple 50mV Max)
Working Current: ≤100 mA
Signal Output: PWM, UART
Mean Time Between Failures (MTBF): ≥3 years
Product Dimensions: W50*H38*D21 (mm)

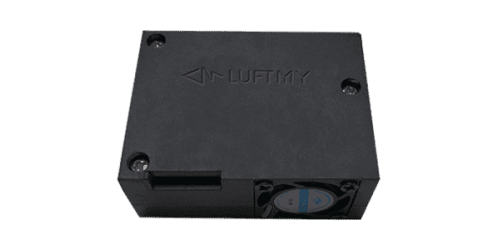

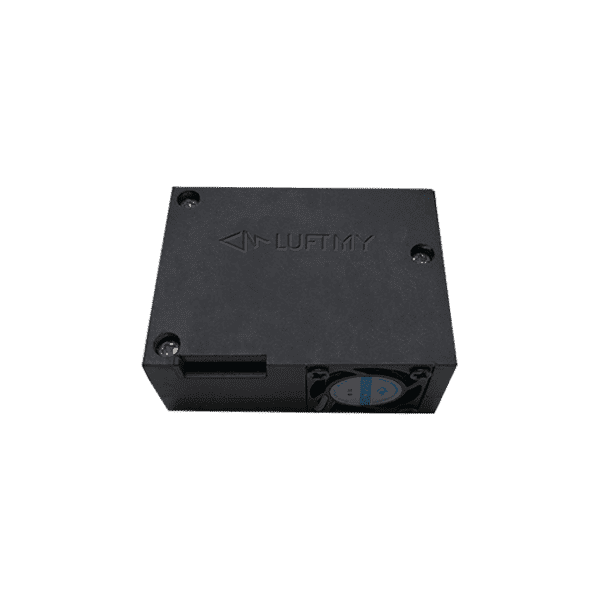

The integrated air quality sensor LD10V is a cost-effective multi-parameter air quality sensor module capable of real-time measurement and output of VOC concentration, CO2, CH2O, and PM (1.0, 2.5, 10) particulate mass concentration. It features stable performance, full metal shielding, good anti-interference capability, compact design, and rich interfaces.
The integrated air quality sensor LD10T is a cost-effective multi-parameter air quality sensor module capable of real-time measurement and output of temperature, humidity, and PM (1.0, 2.5, 10) particulate mass concentration. It features stable performance, full metal shielding, good anti-interference, and compact design.
