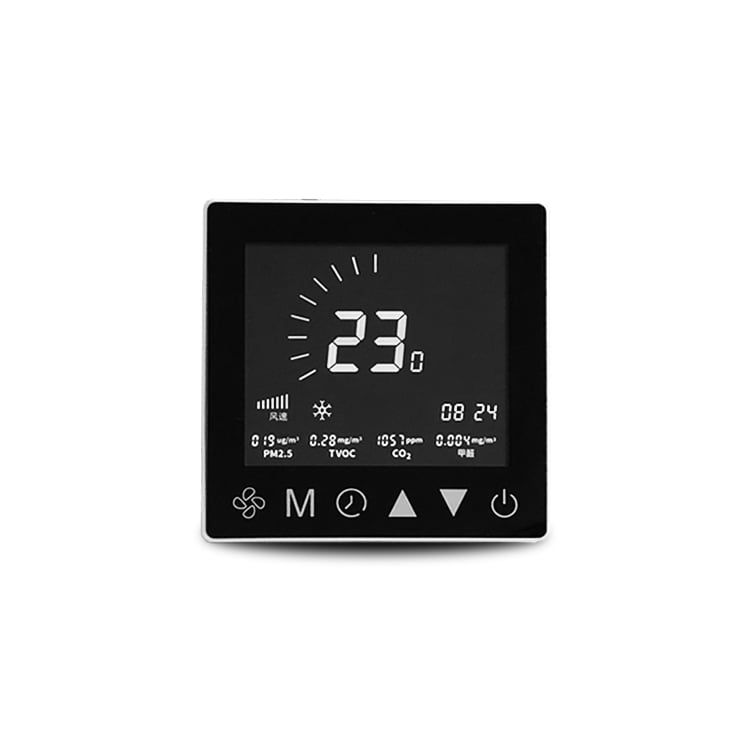

Large LCD displays various states, capacitive touch keys for convenient operation.
Power-off memory function, automatically restores settings after power-up.
Four air supply modes: Auto, High, Medium, Low, displayed by wind speed segments.
White characters on black background LCD backlight for easy nighttime operation.
Automatic control of fan coil units and electric valves.
Real-time clock display for time checking, timed shutdown supported.
Reads CO2, PM2.5, TVOC, Formaldehyde sensor data and uploads to Smart Life APP.
Use Smart Life APP for remote control and data viewing.
Dust Detection Range: 0~1000ug/m³
VOC Detection Range: 0~10ppb
CO2 Detection Range: 400~5000ppm
Humidity Detection Range: 0~95%RH
PM Detection Accuracy ≤100ug/m³, max allowable error ±10ug/m³
PM Detection Accuracy >100ug/m³, max allowable error ±10%
Temperature Detection Accuracy: -40~+80℃, ±1℃
Humidity Detection Accuracy: ±3RH(25℃)
CO2 Detection Accuracy: ±50ppm+5%
Dust Resolution: 1μg/m³
VOC Resolution: 1ppb
Temperature Resolution: 0.1℃
Humidity Resolution: 0.1%

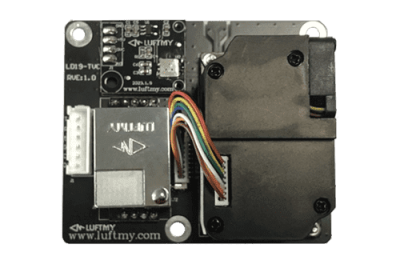

Integrating PM2.5, CO2, VOC, and temperature/humidity sensors, the LD19-TVC module achieves comprehensive monitoring. Built-in laser digital PM2.5 sensor for particle concentration; VOC sensor uses semiconductor resistance changes for gas detection; digital temperature/humidity module for rapid response. Suitable for fresh air systems and central air conditioning, with optional PM2.5 dust sensors, gas sensors, and TFT screens.

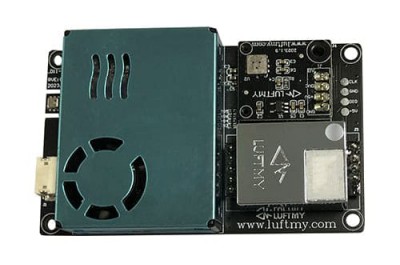

Integrating PM2.5, VOC, CO2, and temperature/humidity sensors, the LD11-TVC environment module achieves comprehensive monitoring of air quality. Built-in laser PM2.5 sensor for particle concentration; VOC sensor uses semiconductor resistance changes for gas detection; digital temperature/humidity module for rapid response and anti-interference. Suitable for fresh air systems and central air conditioning, with optional PM2.5 dust sensors, gas sensors, and TFT screens.
The integrated air quality sensor LD10V is a cost-effective multi-parameter air quality sensor module capable of real-time measurement and output of VOC concentration, CO2, CH2O, and PM (1.0, 2.5, 10) particulate mass concentration. It features stable performance, full metal shielding, good anti-interference capability, compact design, and rich interfaces.
The LD15T integrated sensor module outputs temperature, humidity, and PM1.0/2.5/10 data. Stable, metal-shielded, and compact, it is suitable for high-end appliances and air quality detectors.
