Simultaneous measurement of oxygen concentration and flow rate
Meets CMC, CE, EMC certification requirements
Full-range temperature compensation
Long-term use, lifetime calibration-free
Detection principle: Ultrasonic measurement
Detection range: O₂ concentration: 0–100% (PSA oxygen concentrator O₂ concentration: 20.5%–95.6%)
O₂ flow rate: 0–10 L/min
Measurement accuracy: O₂ concentration: ±1.5% FS @ (10~45)℃
O₂ flow rate: ±0.2 L/min @ (10~45)℃
Resolution: O₂ concentration: 0.1%
O₂ flow rate: 0.1 L/min
Response time: Concentration: ≤ 1.5 s; Flow rate: ≤ 0.3 s
Operating conditions: -5 °C–50 °C, 0–95% RH (non-condensing)
Storage conditions: -20 °C–60 °C, 0–95% RH (non-condensing)
Operating voltage: DC 4.75 V–12.5 V; ripple < 50 mV
Operating current: Average operating current < 35 mA
Signal output: UART_TTL (5 V)
Product dimensions: W120 × H22 × D30 (mm)
The US8500E is an economical sensor for oxygen concentration measurement. Favored by customers for its stable performance and cost-efficiency over many years.
US8500D is a medical-grade oxygen sensor. Unlike electrochemical sensors, it has a 5-year life, no maintenance, and handles flow rates up to 80L/min. Ideal for ventilators.

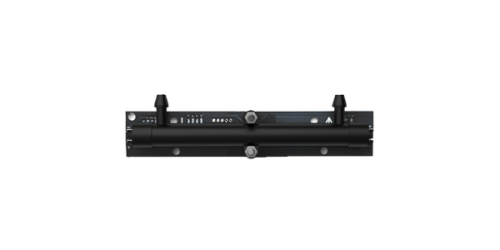

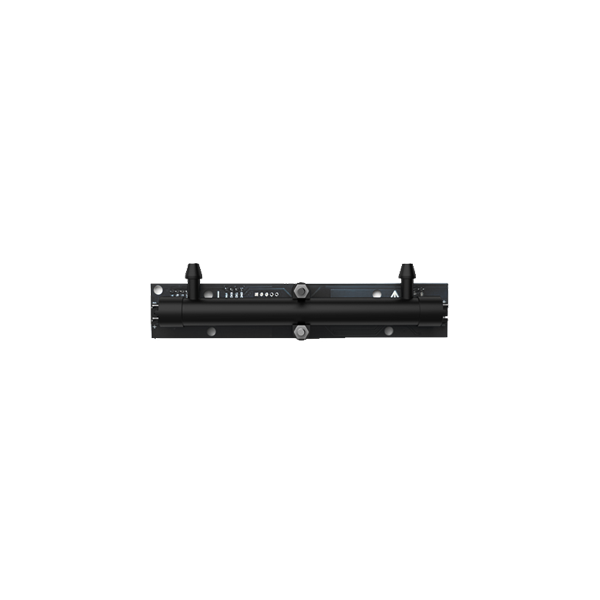

The US7500K is an economical ultrasonic sensor for measuring oxygen flow and concentration in binary gases. Stable and reliable, it is widely used in medical oxygen concentrators.
